Series DKV Normally Closed with threaded ports

CONTROL VALVES

pressure operated 2-Way, Normally Closed with threaded ports, PN17, DN 15 - 40

FEATURES

Ruggedly built valve, particularly recommended for use with steam, oil, superheated water, corrosive fluids and non-flammable gas.
Regell Control Valves were specially designed for use in curing presses in tire and rubber industry.
Enclosed pistons, seals and springs are protected from dirt.
High-performance, self-adjusting, spring-loaded, maintenance-free packing, resistant to thermal shock.
Stainless steel body.
Valve for use at high ambient temperatures (up to 180°C).

PRODUCT ADVANTAGES:

Highly accurate process controll

Self-Regulating Packing

Universally for all Mediums

Long Life

Double guided Valve Stem

Non-Corrosive Materials

Easy Maintenance

Energy Saving

GENERAL INFORMATION:

scrollable table

Maximum operating pressure:	17 bar
Pressure drop:	max. 6 bar
Temperature range:	– 30 °C to + max. 205 °C
Pilot pressure:	0,2 – 1,0 bar
Operating fluids:	Steam / Saturated Steam, Superheated Water, Gases, Vacuum

Model Selection / Dimensions:

Model Number	Rc / BSPT	A	D	L	L₁	L₂	H	Weight, kg
DKV-BSPT-15A	½”	220	46	90	68	298	366	7,2
DKV-BSPT-20A	¾”	220	46	90	68	298	366	7,2
DKV-BSPT-25A	1″	220	46	90	68	298	366	7,2
DKV-BSPT-32A	1¼”	280	62	150	92	427	519	17,2
DKV-BSPT-40A	1½”	280	62	150	92	427	519	17,2

scrollable table

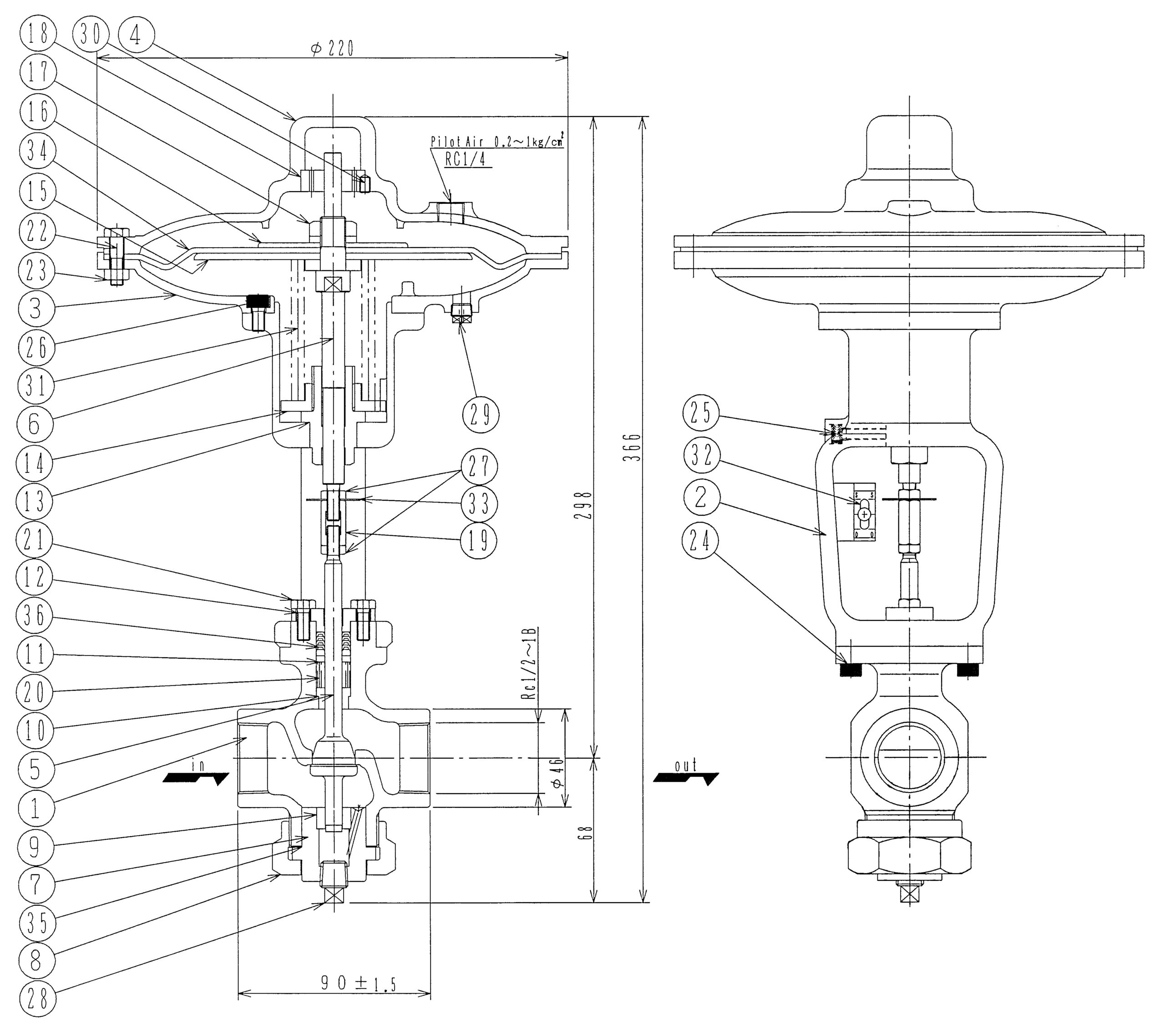

No.	Part Name	Materials	No.	Part Name	Materials
1	Body	SCS13 = 1.4308	19	Joint Nut	C3602 – Brass
2	Yoke Stand	FCD450 = GGG-40.3	20	Packing Spring	SUS304-WPB
3	Diaphragm Cover	FCD450 = GGG-40.3	21	Gland Bolt	SUS304 = 1.4301
4	Diaphragm Case	FCD450 = GGG-40.3	22	Diaphragm Case Bolt	SS400
5	Stem	SUS403 = 1.4000	23	Diaphragm Case Nut	SS400
6	Diaphragm Rod	SUS403 = 1.4000	24	Cap Screw	SCM435
7	Disc Guide	SUS403 = 1.4000	25	Cap Screw	SCM435
8	Disc Guide Nut	S25C = 1.1158	26	Cap Screw	SCM435
9	Disc Guide Bush	PBC1	27	Set Nut	C3602 – Brass
10	Stem Guide	PBC1	28	Plug	FCMB270
11	Packing Washer	SUS403 = 1.4000	29	Plug	FCMB270
12	Gland	SUS403 = 1.4000	30	Set Screw	SS400
13	Rod Guide	C3602 – Brass	31	Spring	SUP6
14	Spring Seat	SUS403 = 1.4000	32	Lift Gauge	SUS304 = 1.4301
15	Diaphragm Plate	SS400	33	Lift Gauge Ring	SUS304 = 1.4301
16	Diaphragm Plate	SS400	34	Diaphragm	V/#4810
17	Lock Nut	C3602 – Brass	35	Gasket	V/#562
18	Rod Guide Bush	C3602 – Brass	36	Gland Packing	V/#7631
